Vulcanizing press

  • Frame type plate vulcanizing press

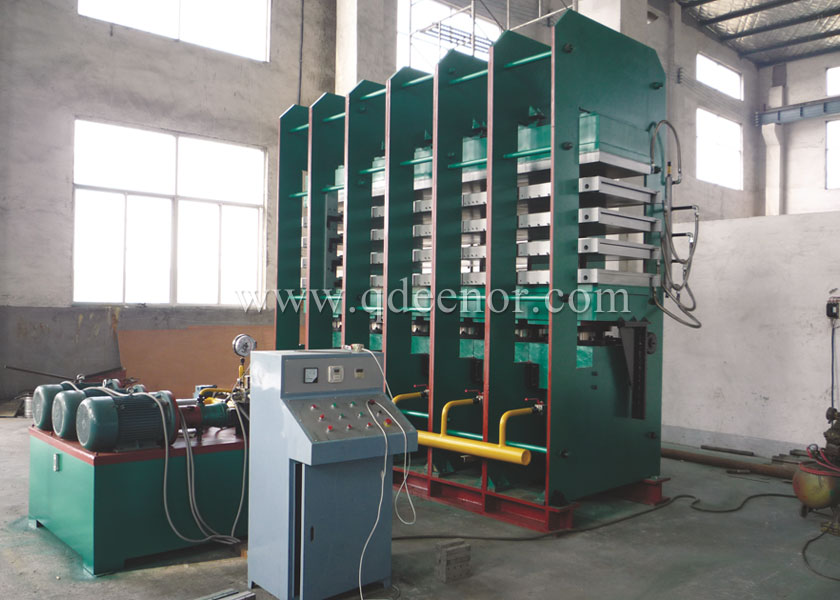

Frame type plate vulcanizing press

Frame type plate vulcanizing press

Type XLB-DQ(框)1200×1200×2 XLB-DQ(框)1300×1200×1 XLB-Q(框)1200×2500×1 XLB-Q(框)1500×2000×1 XLB-Q(框)2000×3000×1 XLB-Q(框)1400×5700×1
Total pressure(MN) 3.15 5.60 7.50 10.00 18.00 28.00
Plate size(mm) 1200×1200 1300×12000 1200×2500 1500×2000 2000×3000 1400×5700
Daylight(mm) 200 400 400 400 400 400
Layer 2 1 1 1 1 1
Piston stroke(mm) 400 400 400 400 400 400
Plate unit area pressure (kg/ cm2) 22 21.15 25 33.5 30 35
Main motor power(KW) 5.5 8 9.5 11 26 55
Overall dimension (L×W×H)(mm) 1685×1320×2450 2000×1860×2500 2560×1700×2780 2810×1550×3325 2900×3200×2860 2400×5800×3600
Weight (kg) 9500 17000 20000 33000 66000 140000
